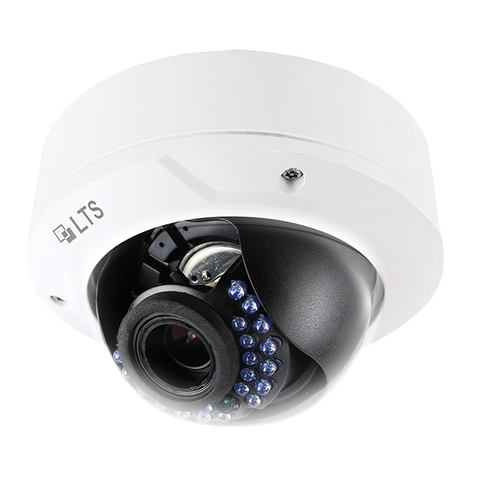

CMIP7223-SZ Platinum Motorized Varifocal Dome Network IP Camera 2.1MP

CMIP7223-SZ Platinum Motorized Varifocal Dome Network IP Camera 2.1MP


Please contact to confirm latest quantities and prices.
  1. Click here to direct message.
  2. Call: 208-917-2901
  3. Email: service@securityhardwarestore.com
  • 2.1MP High Definition
  • 2.8-12mm Varifocal Motorized Lens
  • H.264 Zip+ Ready
  • 1920X1080P
  • 30 IR LEDs up to 100ft
  • 3D DNR, BLC, DWDR, VCA
  • Audio I/O, Alarm I/O
  • Micro SD/SDHC/SDXC Card Slot
  • IP66, IK10 Vandalproof
  • DC 12V/ PoE
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 2.8-12mm @ F1.4, horizontal field of view: 113° to 33.8°
Lens Mount Φ14
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range DWDR
Angle Adjustment Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
Compression Standard
Video Compression H.264 / MJ PEG
H.264 Type Baseline Profile/Main Profile
Video Bit Rate 32 Kbps ~ 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2
Audio Bit Rate 64Kbps (G.711) / 16Kbps (G.722.1) / 16Kbps (G.726) / 32- 128Kbps (MP2L2)
Dual Streams Support
Max. Resolution 1920 × 1080
Frame Rate 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 50Hz: 25fps(1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream 60 Hz: 30 fps (320 x 240), 30 fps (352 x 288), 30 fps (640 x 480), 30fps(704 x 576) 50 Hz: 25 fps (320 x 240), 25 fps (352 x 288), 25 fps (640 x 480), 25fps(704 x 576)
Image Setting Saturation, Brightness, Contrast, etc., adjustable by client software or web browser
BLC Support, zone optional
ROI Codec Support one customized region for each stream
Network
Storage Support Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS)
Detection Intrusion Detection, Line Crossing Detection, Motion Detection
Alarm Trigger Video Tempering Detection, Network Disconnected, IP Address Conflicted, HDD Full, HDD Error
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Anti-Flicker, Mirror, Password Protection, Privacy Mask, Watermark, Heartbeat
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ 45 10M/100M Ethernet port
On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
General
Working Temperature
/Humidity
-22 °F ~ 140°F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)td>
Power Consumption Max. 5.5W
IR Range Approx. 100ft (30 meters )
Weather Proof Ratings IP66
Impact Protection IEC60068-2 7 5Eh, 20J ; EN50102, up to IK10
Dimensions Φ 5.5” × 3.9”(Φ 140 × 99.9 mm)
Weight 2.20lbs (1000 g)
