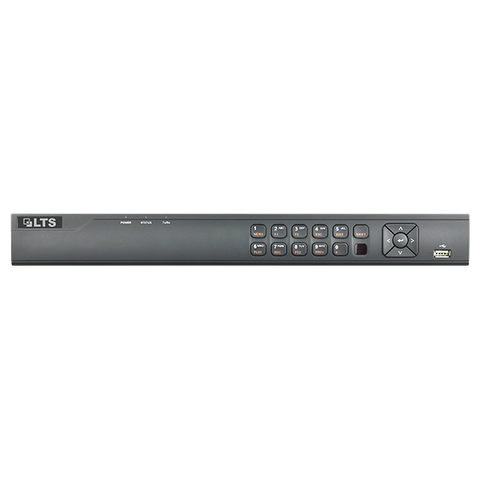

LTN8716T-HT Platinum 16+16 Channel Hybrid NVR Compact 1U


Please contact to confirm latest quantities and prices.

  1. Click here to direct message.
  2. Call: 208-917-2901
  3. Email: service@securityhardwarestore.com
  • 16 + 16 Channel Hybrid Network Video Recorder
  • Support Live View, Storage, Playback up to 4K, 8MP IP Camera
  • Support 16 Channel HD-TVI 3.0 / AHD / Analog
  • Support 16 Channel IP Camera @72MB Bandwidth
  • 1080P HDMI/VGA Video Output, CVBS Spot Out
  • 2 SATA HDD up to 6TB Each
  • 4 Audio In, 1 Audio Out
  • H.264/H.264 Zip+
  • 4 POS
    Video/Audio Input
    Video/Audio Input H.264 Zip+ / H.264
    Video Input 16-CH
    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxition
    Supported HDTVI input 3MP, 1080p/25Hz, 1080p/30Hz, 720p/60Hz, 720p/50Hz, 720p/30Hz, 720p/25Hz
    Supported AHD input 720p/30Hz, 720p/25Hz
    CVBS input Support
    IP input 16-ch(up to 32-ch)
    Audio compression G.711u
    Audio input 4-ch, RCA (2.0 Vp-p, 1 kΩ)
    Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
    Video/Audio Output
    HDMI/ VGA output 1 -ch , 19 20 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
    Encoding resolution 3MP@15fps, 1080p/720p/WD1/4CIF/VGA/CIF
    CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704×576, NTSC: 704×480
    Frame rate Main stream: 30fps(N)/25fps(P)
    Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCI F ( real time)
    Video bit rate 32 Kbps-10 M bps
    Audio output 1-ch, RCA (Linear, 1 kΩ)
    Audio bit rate 64 Kbps
    Dual- stream Support
    Stream type Video, Video & Audio
    Synchronous playback 16ch
    Network
    Remote connections 140Mbps
    Network protocols TCP/IP, PPPoE, DHCP, PT Cloud, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
    Hard Disk
    SATA 2 SATA
    Capacity Up to 6TB capacity for each disk

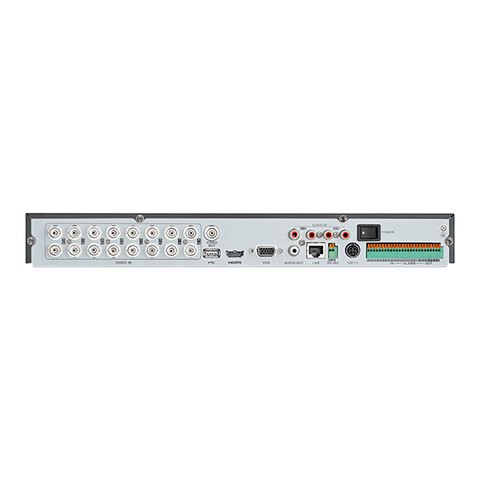

    External Interface
    Network Interface 1, RJ45 10M / 100Mself-adapt ive Ethernet interface
    Serial Interface 1; RS-485 serial interface, half-duplex
    USB Port 2 × USB2.0
    Alarm In/Out 16/4
    General
    Power Supply DC 12V
    Consumption ≤ 40W
    Working Temperature -10 °C ~ +55 °C(14°F - 131°F)
    Working Humidity 10% - 90%
    Chassis 1U chassis
    Dimension 380 × 320 × 48 mm (14.9 × 12.6 × 1.9 inch)
    Weight ≤2 Kg (4.4 lb)

    LTS

    • $ 44650
    • Save $ 7050
