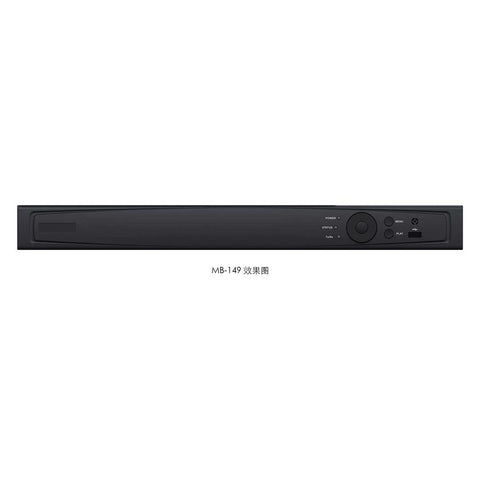

OEM 8 Ch. Analog Camera + 8 Ch. IP Camera / Mix and Match, up to total of 16 Ch. IP Camera DS-7608HI-ST

OEM 8 Ch. Analog Camera + 8 Ch. IP Camera / Mix and Match, up to total of 16 Ch. IP Camera DS-7608HI-ST


OEM Version Hikvision

Description

  • H.264 video compression
  • Up to 3 Megapixels resolution recording
  • HDMI and VGA output at up to 1920×1080P
    resolution
  • 4/8/16-ch synchronous playback

    Please contact to confirm latest quantities and prices.

    1. Click here to direct message.
    2. Call: 208-917-2901
    3. Email: service@securityhardwarestore.com
    Specs
    Specifications
    Model Number HHR301-8 (DS-7608HI-ST)
    Analog video input 8 ch
    Video input interface BNC (1.0 Vp-p, 75 Ω) PAL / NTSC self-adaptive
    IP video input Up to 16 ch
    Composite video input Up to 8 ch
    (Analog video)
    Audio input 4 ch, RCA (2.0 Vp-p, 1 KΩ)
    Incoming andwidth 80 Mbps
    HDMI / VGA output 1920 × 1080 / 60 Hz (1080P) 1600 × 1200 / 60 Hz 1280 × 1024 / 60 Hz
    1280 × 720 / 60 Hz 1024 × 768
    CVBS output 1 ch, BNC (1.0 Vp-p, 75 Ω)
    Audio output 1 ch, RCA (Linear, 1 KΩ)
    Max. remote connection 128 ch
    Outgoing bandwidth 40 Mbps
    Video compression H.264
    Encoding resolution Main stream: 5MP / 3MP / WD1 / 4CIF / 2CIF / CIF / QCIF
    Sub-stream: CIF / QCIF
    Frame rate Main stream: 25 fps (P) / 30 fps (N)
    Sub-stream: 25 fps (P) / 30 fps (N)
    Video bitrate 32 Kbps ~ 3 Mbps
    Audio bitrate 64 Kbps
    Stream type Video, Video & Audio
    Dual-stream Support
    Playback resolution 3MP/1080p/UXGA/720P/WD1/4CIF/VGA/DCIF/2CIF/CIF/QCIF
    Synchronous playback 16 ch
    Record mode Manual recording, Continuous recording, Motion detection recording, Alarm
    recording, Motion Alarm recording, Motion & Alarm recording
    Playback mode Instant playback, Normal playback, Event playback, Tag playback
    Backup mode Normal backup, Event backup
    Protocol IPv6, HTTPS, UPnP™, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, etc.
    Type 2 SATA interfaces
    Capacity Up to 6 TB capacity for each disk
    Two-way audio 1 ch, RCA (2.0 Vp-p, 1 KΩ) (Using audio input)
    Network interface 1, 10M/100/1000M self-adaptive Ethernet interface
    Serial interface 2 × USB2.0
    Power supply 12 VDC
    Consumption (without hard disk) Max. 10W
    Working temperature -10 ºC ~ +55 ºC (14 ºF ~ 131 ºF)
    Working humidity 10%~90%
    Chassis 1U chassis
    Dimensions (W×D×H) 445 × 290 × 45 mm
    (17.5 × 11.4 × 1.8 in)
    Weight Approx. 2 kg / 4.4 lb (without hard disk)

    Hikvision

    • $ 51000
