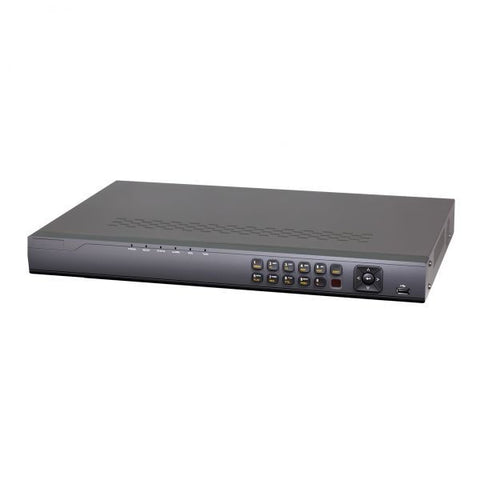

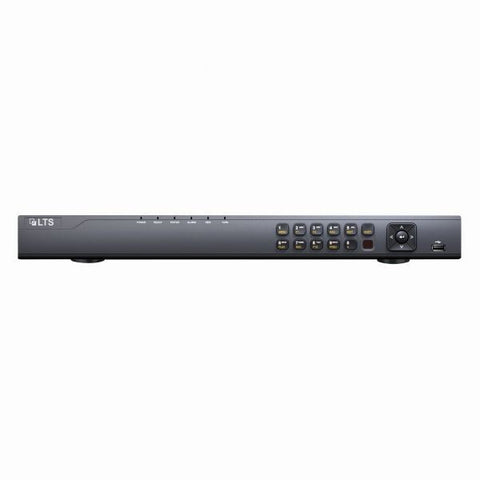

16 Channel, up to 8 Terabyte Black Analog/IP Hybrid NVR


  • 16cH Analog + 16cH IP (Hybrid setup)
  • H.264 video compression
  • Third-party network cameras supported
  • 16ch synchronous playback
  • Up to 5 Megapixels resolution recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • HDD quota and group management
Recorder Series Platinum Series
Recorder Channel 16-Channel
Recorder Case 1U Case
Recorder Technology Hybrid NVR
Featured Product No
Specifications
Video / Audio input
Video compression H.264
Analog video input 16-ch
Video input interface BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
IP video input 16-ch
Composite video
input
Up to 32-ch (Analog video + IP
video )
Audio compression G.711
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (Using audio input)
Video / Audio output
HDMI / VGA output 1920 × 1080 / 60 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 /60Hz
1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
CVBS output 1-ch, BNC (1.0 Vp-p, 75Ω)
resolution: PAL: 704 × 576, NTSC: 704 × 480
Encoding resolution(Analog) Main stream: 4CIF / 2CIF / CIF / QCIF, Sub-stream: CIF / QCIF
Frame rate(Analog) Main stream: 25 fps (P) / 30 fps (N), Sub-stream: 25 fps (P) / 30 fps (N)
Video bitrate 32 Kbps ~ 3 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bitrate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Playback resolution 5 Megapixels /3 Megapixels / 1080P / UXGA / 720P / 4CIF / VGA / DCF / 2CIF / CIF / QCIF
Synchronous
playback
16-ch
Hard disk
SATA 2 SATA interfaces
Capacity Up to 4TB for each disk

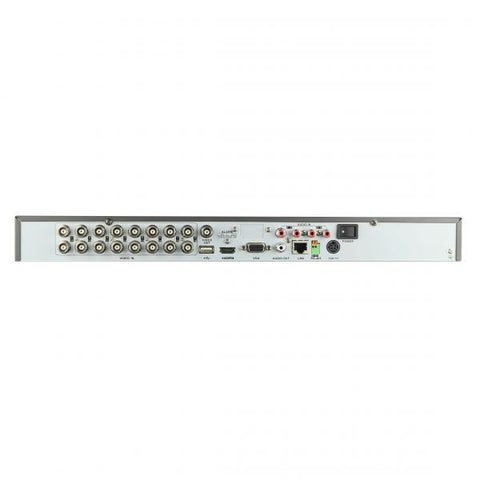

External interface
Network interface 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
Serial interface 1 RS-485 half-duplex interface
USB interface 2 × USB 2.0
General
Power supply 12V DC
Power Consumption ≤ 10 W (without hard disk)
Working temperature 14°F~131°F(-10 °C ~ +55 °C)
Working humidity 10% ~ 90%
Dimension  17.5” x 11.4” x 1.8” (445 × 290 × 45 mm)
Weight ≤ 4.4lb(2 Kg )( without hard disk)



LTS

  • $ 39999
  • Save $ 15271
