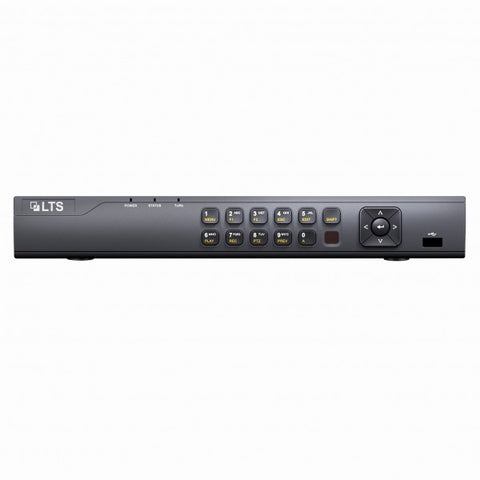

LTN8704Q-P4 - Platinum Professional Level 4 Channel NVR - 4K


Features:
  • 4 Channel Network Video Recorder
  • Support Live View, Recording, Playback up to 4K/8MP IP Camera
  • 40Mb Bandwidth
  • 4K (3840x2160) HDMI Video Output
  • H.265/H.265+/H.264/H.264+

Please contact to confirm latest quantities, prices and installation of HDD.

    1. Click here to direct message.
    2. Call: 208-917-2901
    3. Email: service@securityhardwarestore.com
    Specs



    Video/Audio Input
    IP Video Input 4CH
    Two Way Audio Input 1- ch, RCA (2.0 Vp- p, 1kΩ)
    Incoming Bandwidth 40Mbps
    Outgoing Bandwidth 80Mbps
    Video/Audio Output
    Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
    HDMI Output

    4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60 Hz,
    1280 × 720/60Hz, 1024 × 768/ 60Hz

    VGA Output 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    Video Output 1CH, RCA (Linear, 1kΩ)
    Decoding H.265/H.265+/H.264/H.264 Zip+/MPEG4
    Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
    Synchronous Playback 4CH
    Capability 1-ch @ 8 MP / 4-ch @ 1 080p
    Hard Disk
    SATA 1 SATA interfaces for 1 HDDs
    Capacity Up to 6TB capacity for each disk

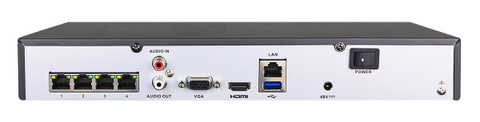

    External Interface
    Network Interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
    Network Protocols TCP/IP, DHCP, PT CLOUD, DNS, DDNS, NTP, IP Portal, SMTP, NFS, iSCSI, UPnP™ , HTTPS
    USB Port 2 × USB2.0
    General
    Power Supply 48V DC
    Consumption ≤ 10W (without enabling PoE)
    Working Temperature 14°F - 131°F(-10 °C ~ +55 °C)
    Working Humidity 10% - 90%
    Chassis 1U Casing
    Dimension 315 ×240× 48mm (12.4×9.4 × 1.9 inch)
    Weight ≤ 1 kg (2.2 lb)

    LTS

    • $ 16799
    • Save $ 9101
