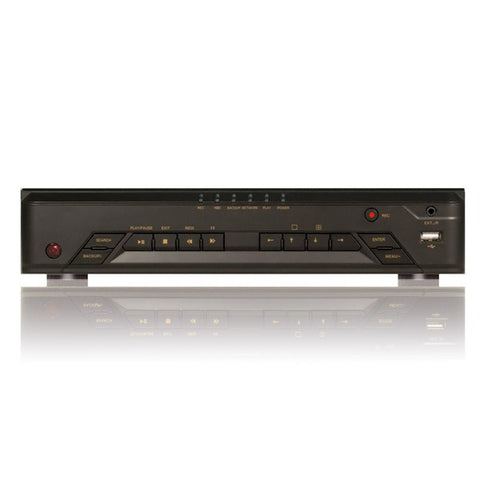

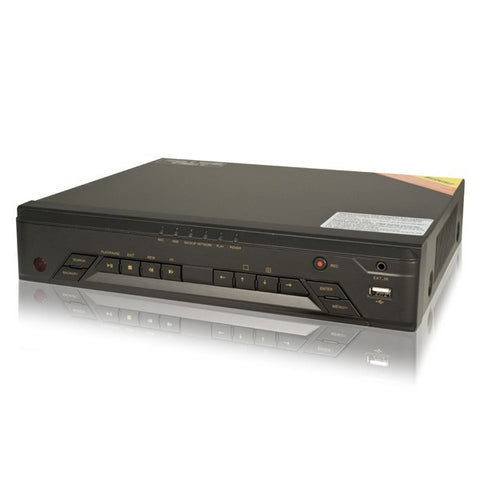

Analog Advanced Level 16 Channel DVR - Compact Case

  •  H.264 Dual stream video compression
  • HDMI/VGA/BNC output at up to 1920×1080P resolution,
  • 2CH Audio input,1CH Audio output
  • 16CH 960H recording
  • 1x SATA HDD up to 3TB
  • Mobile Phone Surveillance(IPhone, IPad, Android phone, Windows 7 phone)
  • DC12V
  • Compact 1U case

Discontinued. Please contact for replacement.

  1. Click here to direct message.
  2. 208-917-2709
Recorder Series V Series
Recorder Channel 16-Channel
Recorder Case Compact Case
Recorder Technology DVR
Featured Product No
System Compression Format Standard H.264
OS Embedded Linux

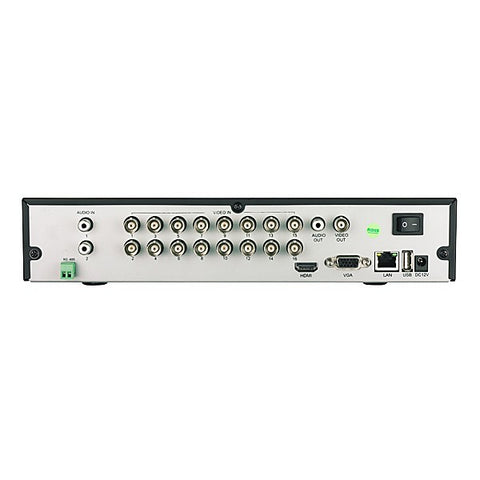

Video  Input 16CH, BNC (1.0Vp-p, 75Ω)
Standard Output 1*VGA: 1920x1080,1280x1024, 1024x768, 800x600 1*BNC:NTSC:704x480;PAL:704x576
Advanced Output 1*HDMI : 1080P: 1920×1080/60Hz
Audio Audio Input 2CH, RCA (2.0 Vp-p, 1 kΩ)
Audio Output 1CH  RCA (Linear, 1 kΩ)
Bidirectional Talk 1CH, RCA (2.0 Vp-p, 1 kΩ) (using 1ch audio input)
Recording Recording Resolution 7 fps@960H /D1;30 fps@CIF
Recording Mode Schedule,Manual,Motion,Sensor
Playback Max Playback Channel 16CH
Search Mode time, event, file
Backup USB Disk Yes
Remote Application Dual Stream Support; master stream, sub-stream
Browser IE (windows XP/2000/Vista/7) , Safari(Mac OS), Chrome,Firefox
Mobile Phone Broview for iPad/iPad2/iPhone//Android
User Access 18 users online with professional authority management
Storage HDD 1x SATA, up to 3TB
Network Ethernet 1, RJ45 10M / 100M Ethernet interface
Others Power Supply DC12V
Consumption ≤ 10 W (without hard disk or DVD-R/W)
Operating Temperature -10 ºC ~ 55 ºc
Humidity 10% ~ 90% humidity
Product Dimension 300mm ×270mm ×58mm


  • $ 20934
  • Save $ 5116
