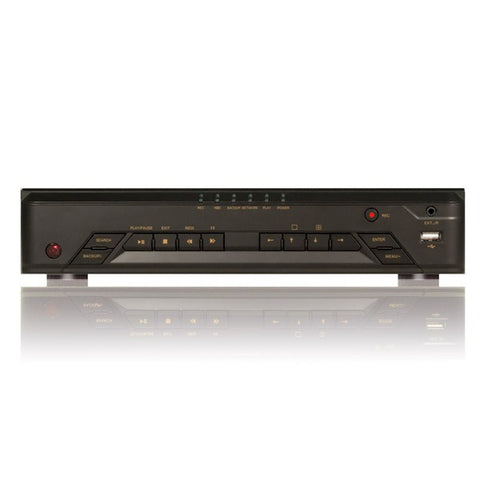

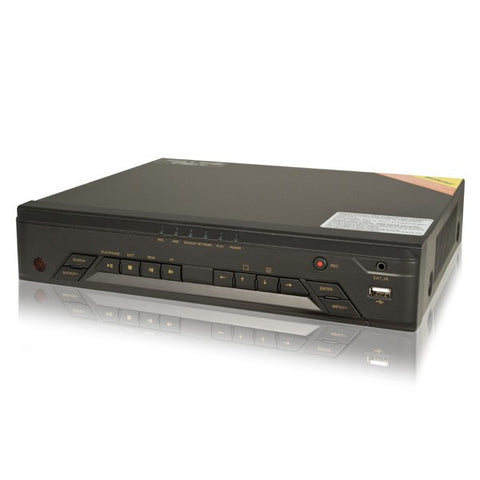

16 Channel, Up to 3 Terabyte Black Analog DVR


  • H .264 Dual-stream video compression

  • 2CH Audio input, 1CH Audio output

  • HDMI/VGA/BNC output at up to 1920×1080P resolution

  • 15 fps @960H / 30 fps@D1 recording

  • 1x SATA HDD up to 3TB

  •  Mobile Phone Surveillance(iPhone, iPad, Android phone, Windows 7 phone)

  •  DC12V

  •  Compact 1U case

Recorder Series V Series
Recorder Channel 16-Channel
Recorder Case Compact Case
Recorder Technology DVR
Featured Product No
Specifications
Video / Audio input
Video compression H.264
Video input 16-ch
Video input interface BNC (1.0 Vp-p, 75Ω )
Audio compression G.711u
Audio input 4-ch, RCA(2.0 Vp-p, 1 kΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Video / Audio output
HDMI output 1-ch, resolution: 1080P:1920×1080 /60 Hz
VGA output 1-ch, resolution: 1280×1024 /60 Hz,1024×768/60HZ,800×600/60HZ
CVBS output 1-ch, BNC (1.0 Vp-p, 75Ω), resolution: NTSC: 704 × 480,PAL: 704 × 576
Video spot out 1-ch, BNC (1.0 Vp-p, 75Ω), resolution:NTSC: 704 × 480, PAL: 704 × 576
Encoding resolution WD1:240(NTSC)/192(PAL)fps;D1:480(NTSC)/400(PAL)fps;CIF:480(NTSC)/400(PAL)fps
Video bit rate 32 Kbps ~ 3072 Kbps, or user defined (max. 3072 Kbps)
Audio output 1-ch, RCA (linear, 1KΩ)
Audio bit rate 64 Kbps
Dual-stream Support; Sub-stream: CIF
Synchronous playback 16-ch
Hard disk
SATA 1 SATA interfaces
Capacity Up to 3TB

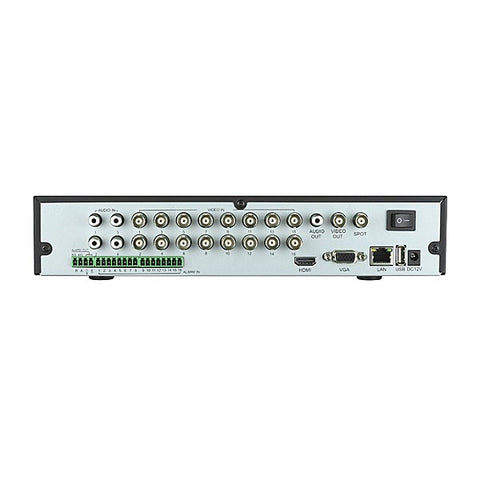

External interface
Network interface 1, RJ45 10M / 100M / 1000M Ethernet interface
PTZ interface RS-485(half-duplex)
USB interface 2, USB2.0
Alarm in 16
Alarm out 1
General
Power supply DC 12V 2A
Power Consumption ≤ 10 W(without hard disk or DVD-R/W)
Working temperature -10 °C ~ + 55 °C(14 °F - 122°F)
Working humidity 10% ~ 90%
Dimension  300 × 270× 58mm(11.8"×10.6"×2.3")
Weight ≤ 2kg(4.4lb) (without hard disk or DVD-R/W)
