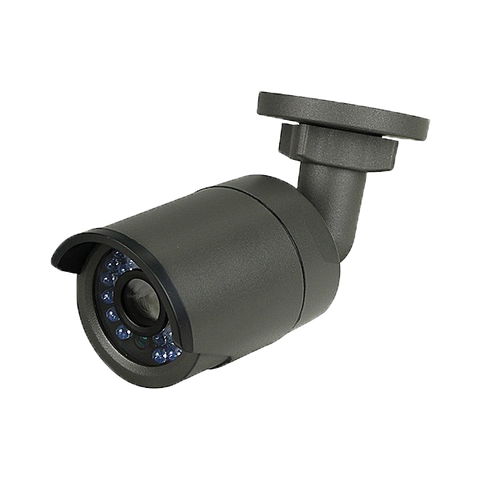

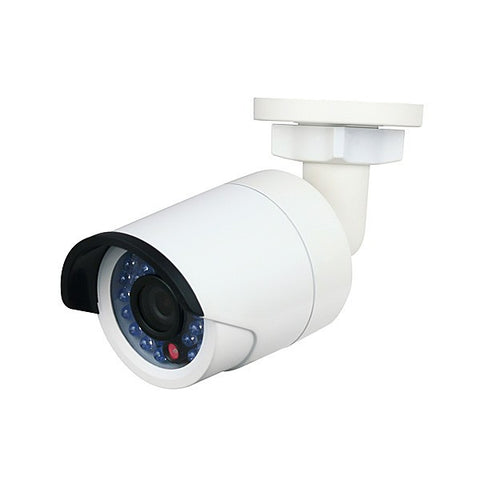

Platinum Mini IR Bullet Camera 4.1MP - White&Black - CMIP8242W/CMIP8242WB


  • 4.1MP High Definition
  • 1/3” CMOS
  • 2688X1520P@20fps
  • 4mm Fixed Lens
  • 30 IR LEDs up to 100ft
  • 3D DNR, WDR, BLC, VCA
  • IP66
  • DC 12V, PoE

Please contact to confirm latest quantities and prices.

  1. Click here to direct message.
  2. Call: 208-917-2901
  3. Email: service@securityhardwarestore.com
Specs
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/10,000 s
Lens 4mm, Angle of View: 83 °
Lens Mount M12
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range 120dB
Compression Standard
Video Compression H.264 / MJPEG/H.264 Zip+
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 8 Mbps
Dual Streams Support
Max. Resolution 2688×1520
Frame Rate 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
Image Setting

Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General

One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access

Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ45 10M/100M Ethernet port
Reset Yes
General
Working Temperature
/Humidity
-22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%, PoE (802.3af)
Power Consumption Max. 5W
IR Range Approx. 100ft (30 meters)
Weather Proof Ratings IP66
Dimensions 2.4” × 3.0” × 5.5”(60.4×76.9×139.2 mm )
Weight 1.1 lbs (500g)

LTS

  • $ 16100
