A white camera

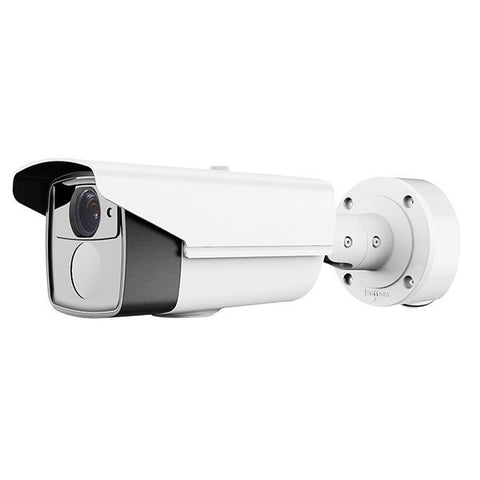

CMHR9923DW Platinum HD-TVI Varifocal Bullet Camera 2MP


  • 2.1MP High Definition
  • Full HD 1080P
  • 1920X1080P@30fps
  • 2.8-12mm Varifocal Lens
  • 1 Matrix IR LED up to 165ft
  • Outdoor/Indoor
  • DC 12V
  • IP66
  • WDR
  • UTC
  • Junction Box Included

Please contact to confirm latest quantities and prices.

  1. Click here to direct message.
  2. Call: 208-917-2901
  3. Email: service@securityhardwarestore.com
Specs
Camera
Image Sensor  1/3"Sensor
Signal System NTSC / PAL(Euro Version)
Effective Pixels 1920(H)×1080(V)
Min. Illumination 0.014Lux @ (AGC ON),0 Lux with IR
Shutter Speed NTSC: 1/30 ~ 1/50,000
PAL: 1/25 ~ 1/50,000
Lens

2.8-12mm
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate NTSC:1080p@30fps/PAL:1080p@25fps
HD Video Output 1 CVBS Output, 1 HD-TVI Output
S/N Ratio More than 52dB
Menu
Scene Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID On / off (15 characters, position programmable)
AGC Support
D / N Mode Color / BW / EXT
White Balance ATW, AWC-SET, Indoor, Outdoor, Manual
Privacy Mask On/Off,maximum 8 zones
Motion Detection On / Off, maximum 4 zones
BLC Support
Anti-flicker On / off
Language English, Japanese, CHN1, CHN2, Korean, German, French, Italian,Spanish,Polish, Russian, Portuguese, Dutch, Turkish, Hebrew, and Arabic
Functions Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM
General
Working Temperature
/Humidity
-4°F - 140°F(-20 °C - 60 °C )
Humidity 90% or less (non-condensing)
Power Supply 12V DC, 24V AC
Power Consumption Max.10W
Weather Proof Ratings IP66
IR Range Up to 175ft (50m)
Dimension(without junction box)  φ11.8'' × 4.0''× 4.2'' ( 300.8 x 100.8 x 107.6mm)
Weight(without junction box) 1.5lb(700g)

LTS

  • $ 15299
  • Save $ 13401
