| Specifications |
| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Min. Illumination |
0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/10,000 s |
| Lens |
4mm |
| Lens Mount |
M12 |
| Day & Night |
IR cut filter with auto switch |
| DNR |
3D DNR |
| Wide Dynamic Range |
120dB |
| Compression Standard |
| Video Compression |
H.264 / MJPEG/H.264 Zip+ |
| H.264 Type |
Main Profile |
| Video Bit Rate |
32 Kbps ~ 8 Mbps |
| Dual Streams |
Support |
| Image |
| Max. Resolution |
2688×1520 |
| Frame Rate |
60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) |
| Image Setting |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
|
| BLC |
Support, zone configurable |
| ROI Codec |
Support |
| Network |
| Network Storage |
NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger |
Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
|
| General |
One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
|
| Standard |
ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Interface |
| Communication Interface |
1 RJ45 10M/100M Ethernet port |
| Reset |
Yes |
| General |
Working Temperature
/Humidity |
-22 °F ~ 140 °F (-30 °C ~ 60 °C)
Humidity 95% or less (non-condensing) |
| Power Supply |
DC12V ± 10%, PoE (802.3af) |
| Power Consumption |
Max. 5W |
| IR Range |
Approx. 100ft (30 meters) |
| Weather Proof Ratings |
IP66 |
| Dimensions |
2.4” × 3.0” × 5.5”(60.4×76.9×139.2 mm ) |
| Weight |
1.1 lbs (500g) |
|

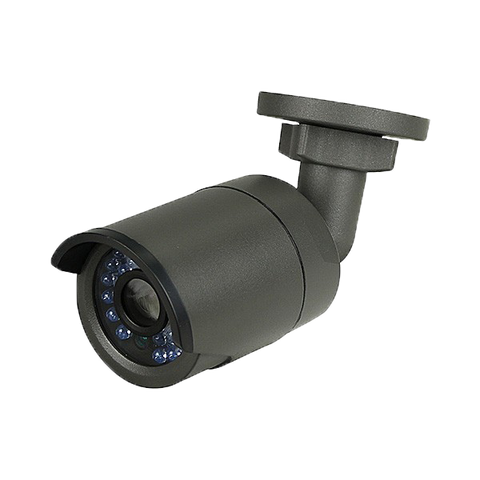

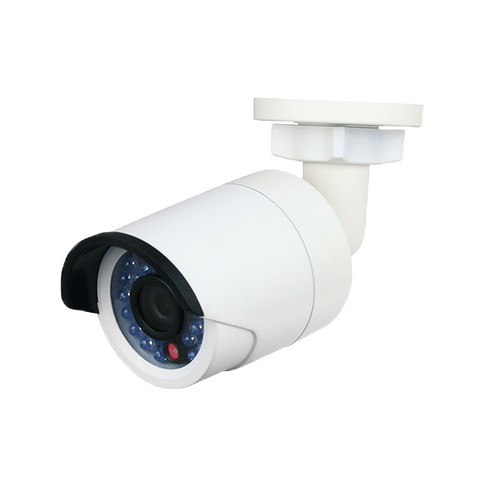

4.1MP High Definition
