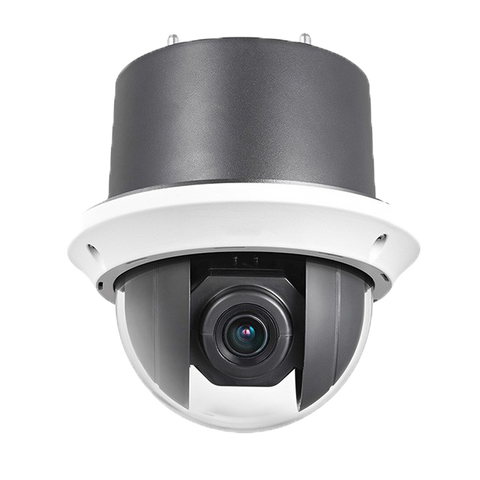

PTZH212X23-C Platinum HD-TVI PTZ High Speed Dome Camera 2.1MP - In Ceiling

PTZH212X23-C Platinum HD-TVI PTZ High Speed Dome Camera 2.1MP - In Ceiling


  • 2.1MP High Definition
  • 1920X1080P@30fps
  • 4" dome in-ceiling and flush mount
  • 4-92mm, 23x Optical Zoom
  • 3D DNR, DWDR, 3D Privacy Masking
  • AC 24V
  • 4"(Φ)
  • CVBS Output
  • Indoor Only

Please contact to confirm latest quantities and prices.

  1. Click here to direct message.
  2. Call: 208-917-2901
  3. Email: service@securityhardwarestore.com
Specs
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.05Lux@(F1.6, AGC ON); B/W: 0.001Lux@(F1.6, AGC ON)
Max. Image Resolution 1920x1080
White Balance Auto/Manual/ATW/Indoor/Outdoor
AGC Auto / Manual
S / N Ratio ≥ 50dB
3D DNR Support
DWDR Support
Shutter Time 1/1~ 1/10,000s
Day and Night IR Cut Filter
Privacy Mask 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Lens
Focal Length 4-92mm, 23x
Digital Zoom 16x
Zoom Speed Approx.3s (Optical Wide-Tele)
Angle of View 49 - 2.2 degree (Wide-Tele)
Min. Working Distance 10 - 1000mm (Wide-Tele)
Aperture Range F1.6 ~ F3.5
Focus Mode Auto / Semiautomatic / Manual
Pan and Tilt
Pan Range Pan: 360° endless
Pan Speed Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset Speed: 160°
Tilt Range 0° - 90° (Auto Flip)
Tilt Speed Tilt Manual Speed: 0.1° - 120°/s, Tilt Preset Speed: 120°/s
Number of Preset 256
Patrol 8 Patrols, Up to 32 Presets Per Patrol
Pattern 4 Patterns, with the total recording time not less than 10 minutes
Park Action Preset/Patrol/Pattern/Pan scan/Tilt scan/Random Scan/Frame scan/Panorama scan
RS-485 Communication Diagnosis Support
Input/Output
HD Output 1 1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
CVBS Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Alarm Input 2
Alarm Output 1
RS-485 Interface Half-duplex mode;Self-adaptive Pelco-P, Pelco-D protocol
Infrared
IR Distance 492ft (150m)
IR Intensity Automatically adjusted, depending on the zoom ratio
General
Power 24V AC, Max. 12W
Working Temperature/ Humidity -30 °C-65°C(-22°F-149°F)/90% or less
Impact Protection IK08
Dimensions Φ7.3”×13.0”(Φ185×330mm)
Weight 8.8lbs(4.0kg)
