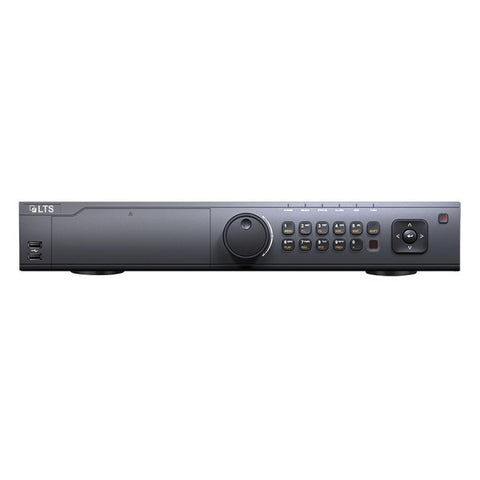

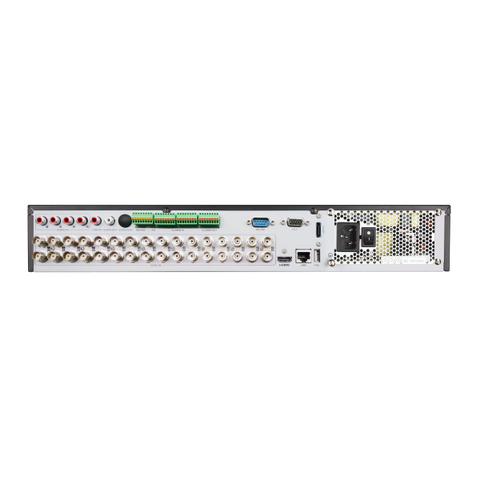

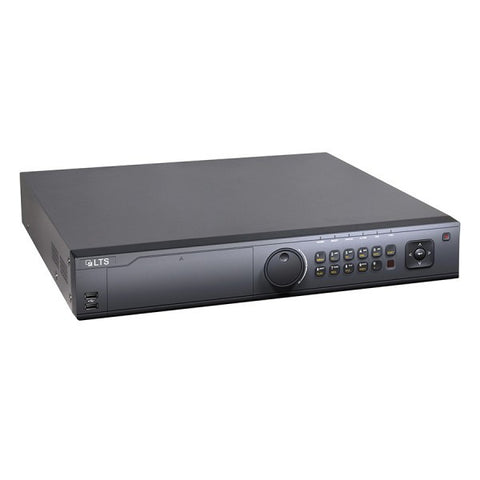

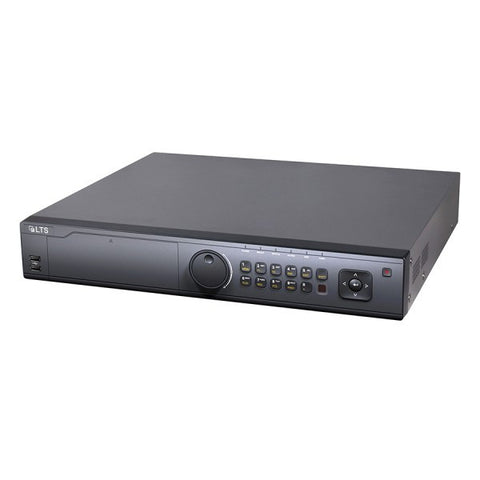

Platinum Enterprise Level 32 Channel HD-TVI DVR 1.5U - LTD8432T-FA


  • 32 Channel Tri-brid Digital Video Recorder
  • Analog & HD-TVI Video In: 32CH
  • IPC Input: Up to 8CH 1080P@30fps
  • Video Output: VGA/HDMI up to 1080P
  • Playback Channel: 32CH
  • Audio In/Out: 4CH/1CH, RCA
  • Alarm In/Out: 16/4
  • Network: 10/100/1000M
  • Storage: 4 SATA up to 24TB
  • eSATA: 1
  • USB: 3 USB 2.0
  • PTZ: 1 RS485
  • Support POS #: 8

*Inquire if you need HDD

Please contact to confirm latest quantities and prices.

  1. Click here to direct message.
  2. Call: 208-917-2901
  3. Email: service@securityhardwarestore.com
Specs
Video/Audio Input
Video Compression H.264
Analog and HD-TVI Video Input 32CH/ BNC (1.0 Vp-p, 75 Ω), PAL/NTSC self-adaptive
IP Input Up to 8CH (1080p@30fps)
Audio Compression G.711u
Audio Input 4-ch, RCA (2.0 Vp-p, 1kΩ)
Two-Way Audio Input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Video/Audio Output
HDMI/ VGA Output 1920 x 1080/60Hz, 1280 x 1024/ 60Hz, 1280 x 720/ 60Hz, 1024 x 768/60Hz
Encoding Resolution Main Stream: 1080P (non-real-time) / 720P / VGA / WD1 / 4CIF / CIF/
Sub-Stream: WD1(non-real-time)/ 4CIF(non-real-time)/ CIF/ QCIF/ QVGA
Frame Rate Main Stream: 1/16fps~ Real time frame rate/
Sub-Stream: 1/16fps~ Real time frame rate
Video Bit Rate 32Kbps-4Mbps
Audio Output 1-CH, RCA (Linear, 1 kΩ)
Audio Bit Rate 64 Kbps
Dual-Stream Support
Stream Type Video, Video & Audio
Synchronous Playback 32CH
Playback Resolution 1080P/ 720P/ VGA/ WD1/ 4CIF/ CIF QVGA/ QCIF
Network
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk
SATA 4 SATA Interfaces for 4 HDDs; 1 eSATA interface
Capacity Up to 6TB capacity for each disk
External Interface
Network Interface 1:10M/ 100M/ 1000M self adaptive Ethernet interface
Serial Interface RS-232, RS-485, Keyboard
USB Port 3xUSB2.0
Alarm In/Out 16/4
General
Power Supply 100~240VAC, 47~63HZ
Consumption ≤65W
Working Temperature -10°C ~ 55°C(14°F-131°F)
Working Humidity 10%~90%
Chassis 19-inch rack mounted 1.5U Chassis
Dimesnsions (WxDxH) 445 x 390 x 70mm (17.5x15.3x2.7inch)
Weight ≤5Kg (11.0lb)

LTS

  • $ 78100
  • Save $ 39861
