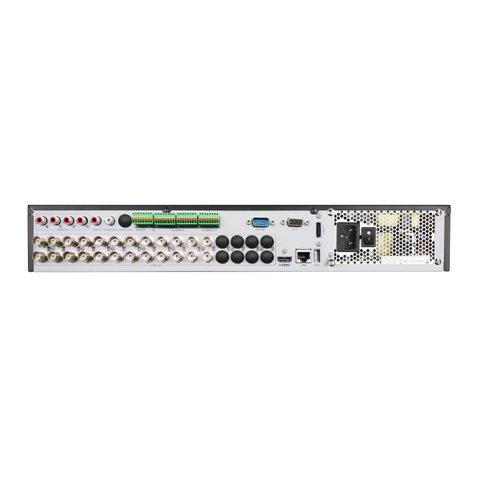

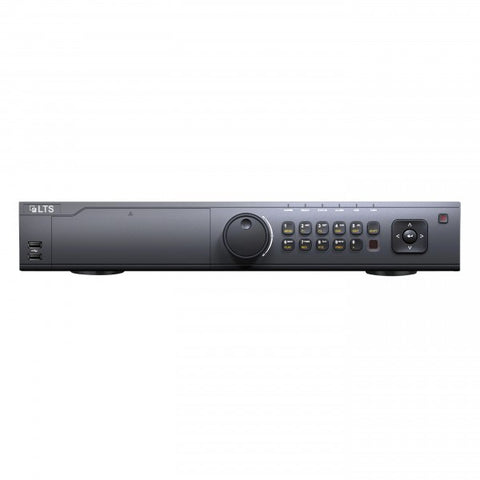

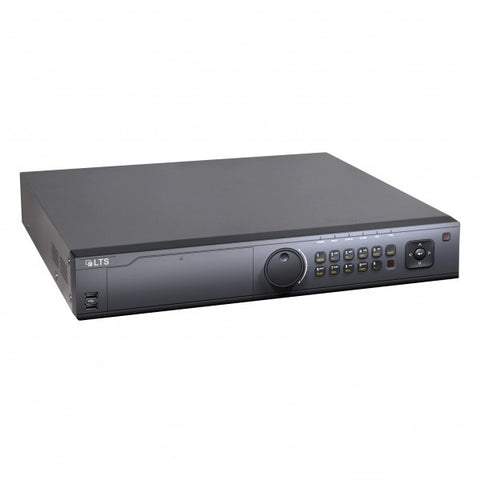

LTD8424T-FA 24 Channel, up to 24 Terabyte Black Triple Hybrid TVI/Analog/IP


  • H.264 & Dual-stream video compression
  • Support HD-TVI/analog/IP camera triple hybrid
  • Full channel 1080P@15fps, 720P@30fps recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • 4 SATA HDD interface, up to 6TB for each disk
  • Support NAS, IP SAN Network Storage, 8 x POS
  • Long transmission distance over coax cable
  • Support up to 24-ch synchronous playback

Please contact to confirm latest quantities and prices.

  1. Click here to direct message.
  2. Call: 208-917-2901
  3. Email: service@securityhardwarestore.com
Specs
Recorder Series Others
Recorder Channel 24-Channel
Recorder Case 1.5U Case
Recorder Technology TVI DVR
Featured Product No
Specifications
Video / Audio input
Video compression H.264
HD-TVI video input 24-ch
Video input interface BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
IP input Up to 32ch(1080p@30fps)
Audio compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI/VGA output 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rate Main stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate
Video bit rate 32 Kbps-4 Mbps
Audio output 1-ch, RCA (Linear, 1 kΩ)
Audio bit rate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 24-ch
Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network
Remote connection 128
Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA 4 SATA interfaces for 4 HDDs; 1 eSATA interface
Capacity Up to 6TB capacity for each disk
External interface
Network interface 1:10M / 100M/1000M self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard
USB port 3 × USB2.0
General
Power supply 100 ~ 240VAC, 47 ~ 63HZ
Power Consumption ≤ 55W
Working temperature -10 °C~+55°C(14°F ~ 131 °F)
Working humidity 10% ~ 90%
Dimension  445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch)
Weight ≤5Kg (11.0lb)

LTS

  • $ 58698
  • Save $ 21202
