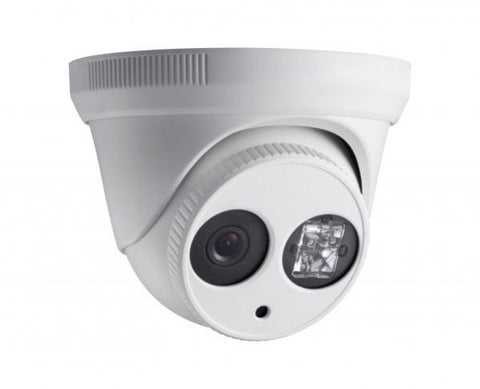

A white camera

CMHT2722W-28 Platinum HD-TVI Turret Camera 2MP - 2.8mm


  • 2.1MP High Definition
  • Full HD 1080P
  • 1920X1080P@30fps
  • 2.8mm Fixed Lens
  • 1 Matrix IR LED up to 131ft
  • Outdoor/Indoor
  • DC 12V
  • IP66
  • UTC

Please contact to confirm latest quantities and prices.

  1. Click here to direct message.
  2. Call: 208-917-2901
  3. Email: service@securityhardwarestore.com
Specs
Camera
Image Sensor  1/3"Sensor
Signal System NTSC / PAL(Euro Version)
Effective Pixels 1920(H)×1080(V)
Min. Illumination 0.01 Lux @ (AGC ON),0 Lux with IR
Shutter Speed NTSC: 1/30 ~ 1/50,000
PAL: 1/25 ~ 1/50,000
Lens

2.8mm, FOV: 103°
Day & Night ICR
Synchronization Internal synchronization
Video Frame Rate NTSC:1080p@30fps/PAL:1080p@25fps
HD Video Output 1 Analog HD output
S/N Ratio More than 52dB
Menu
Scene Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID On / off (15 characters, position programmable)
AGC Support
D / N Mode Color / BW / EXT
White Balance ATW, AWC-SET, Indoor, Outdoor, Manual
D/N Mode Color/BW/SMART IR
Privacy Mask On/Off,maximum 8 zones
Motion Detection On / Off, maximum 4 zones
BLC Support
Anti-flicker On / off
Language

English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish,Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic

Function

Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM

General
Working Temperature
/Humidity
-4°F - 140°F(-20 °C - 60 °C )
Humidity 90% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max.5W
Weather Proof Ratings IP66
IR Range Up to 131ft(40m)
Dimension  φ4.5'' × 3.5'' ( φ114.6 x 89.1mm)
Weight 0.7lb(300g)
