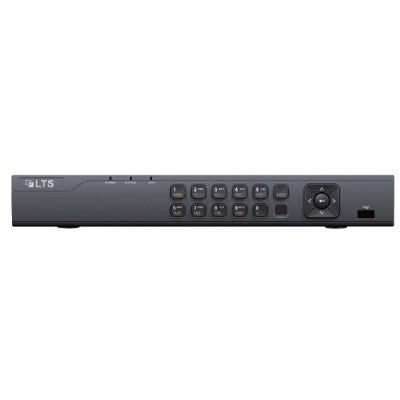

LTN8608D-P8 - Platinum 8 Channel 4K Deep Learning NVR 1U
- Quad-core 8 Channel Network Video Recorder
- Support Live View, Storage, and Playback up to 12.3MP IP Camera
- 80MB Input Bandwidth
- 8 Built-in PoE
- 4K (3840x2160) HDMI, VGA, CVBS Video Output
- 2 SATA up to 12TB HDD
- 4 POS via TCP/IP
- Support 6MP / 12.3MP Fisheye
- Support H.264/H.264 Zip+, H.265 Ready
*Inquire if you need HDD
Please contact to confirm latest quantities and prices.
- Click here to direct message.
- Call: 208-917-2901
- Email: service@securityhardwarestore.com
Specs
|
Model |
LTN8608D-P8 |
|||
|
Video/Audio input |
IP video input |
8-ch |
||
|
Two-way audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|||
|
Network |
Incoming/Outgoing bandwidth |
80 Mbps/256 Mbps |
||
|
Video/Audio output |
Recording resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
||
|
CVBS output |
1-ch, BNC (1.0 Vp-p, 75 Ω) |
|||
|
HDMI resolution |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|||
|
VGA resolution |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|||
|
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
|||
|
Decoding |
Decoding format |
H.265/H.265+/H.264/H.264+/MPEG4 |
||
|
Synchronous playback |
8-ch |
|||
|
Capability |
12 × 1080p |
|||
|
Smart analysis |
Capability |
False alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP. |
||
|
Hard disk |
SATA |
2 SATA interfaces for two 3.5-inch HDDs |
||
|
Capacity |
Up to 8 TB capacity for each HDD |
|||
|
External interface |
Network interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
||
|
USB interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
|||
|
Alarm in/out |
4/1 |
|||
|
PoE interface |
Interface |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
||
|
Power |
≤ 120 W |
|||
|
Supported standard |
IEEE 802.3 af/at |
|||
|
General |
Power supply |
100 to 240 VAC |
||
|
Total Power |
≤ 180 W |
|||
|
Consumption (without HDD) |
≤ 15 W |
|||
|
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|||
|
Working humidity |
10 to 90 % |
|||
|
Chassis |
1U chassis |
|||
|
Dimensions (W×D×H) |
380 × 315 × 51.5 mm ( 15.0"× 12.4" × 2.0") |
|||
|
Weight (without HDD) |
≤ 3 kg (6.6 lb) |
|||
