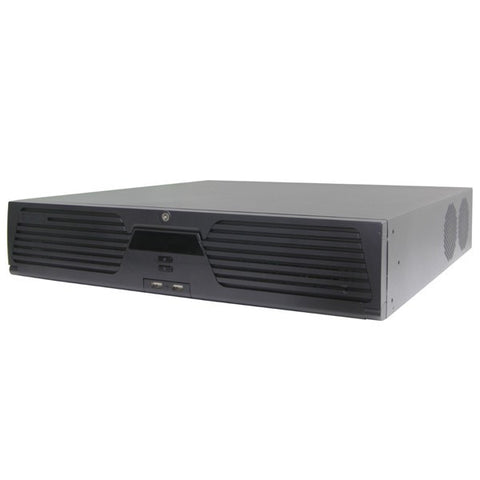

64 Channel, up to 48 Terabyte, up to 8MP NVR
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- 8 SATA interfaces,up to 6TB for each disk
- Support NAS, IP SAN Network Storage
- HDD quota and group management
- Dual gigabit network interfaces
- RAID 0,1,5,10 supported
Discontinued. Please contact for replacement.
- Click here to direct message.
- 208-917-2709
- service@securityhardwarestore.com
Specs
| Video / Audio input | |
| IP video input | 64-ch |
| Two-way audio input | 1-ch, BNC (2.0 Vp-p, 1 kΩ) |
| Incoming bandwidth | 768Mbps |
| Outgoing bandwidth | 768Mbps |
| Remote connection | 128 |
| Video / Audio output | |
| Recording resolution | 8MP/5MP/3MP/1080P/UXGA/720P/VGA / 4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI output |
2-ch, resolution: |
| VGA output |
1-ch, resolution: |
| Audio output | 1-ch, BNC (Linear, 600 Ω) |
| Playback resolution | 8MP/5MP/3MP/1080P/ UXGA/ 720P/ VGA / 4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous playback | 16-ch |
| Hard disk | |
| SATA | Up to 8 SATA interfaces for 4HDD+1 DVD-R/W, or 8HDDs |
| eSATA | 1 eSATA interface |
| Disk array | |
| Array type | RAID0, RAID1, RAID5, RAID10 |
| Number of array | 8 |
| External interface | |
| Network interface | 2, 10M / 100M / 1000M self-adaptive Ethernet interface |
| Serial interface | RS-232, RS-485, RS-485 keyboard |
| USB port | 2 x USB2.0 + 2 x USB3.0 |
| Alarm in/out | 16/4 |
| General | |
| Power supply | 100 ~ 240 VAC, 6.3A, 50 ~ 60Hz |
| Power Consumption | ≤100W |
| Working temperature | -10°C ~ +55°C (14 °F ~ 131 °F) |
| Working humidity | 10% ~ 90% |
| Dimension | 445 × 470 × 90 mm (17.52" ×18.5"× 3.54") |
| Weight | ≤ 8 kg (17.64 lb) ( without hard disk or DVD-R/W ) |
