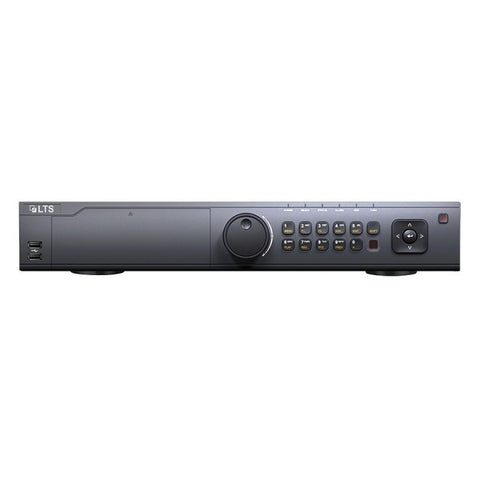

Platinum Enterprise Level 32 Channel HD-TVI DVR 1.5U - LTD8432T-FA
- 32 Channel Tri-brid Digital Video Recorder
- Analog & HD-TVI Video In: 32CH
- IPC Input: Up to 8CH 1080P@30fps
- Video Output: VGA/HDMI up to 1080P
- Playback Channel: 32CH
- Audio In/Out: 4CH/1CH, RCA
- Alarm In/Out: 16/4
- Network: 10/100/1000M
- Storage: 4 SATA up to 24TB
- eSATA: 1
- USB: 3 USB 2.0
- PTZ: 1 RS485
- Support POS #: 8
*Inquire if you need HDD
Please contact to confirm latest quantities and prices.
- Click here to direct message.
- Call: 208-917-2901
- Email: service@securityhardwarestore.com
Specs
| Video/Audio Input | |
| Video Compression | H.264 |
| Analog and HD-TVI Video Input | 32CH/ BNC (1.0 Vp-p, 75 Ω), PAL/NTSC self-adaptive |
| IP Input | Up to 8CH (1080p@30fps) |
| Audio Compression | G.711u |
| Audio Input | 4-ch, RCA (2.0 Vp-p, 1kΩ) |
| Two-Way Audio Input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Video/Audio Output | |
| HDMI/ VGA Output | 1920 x 1080/60Hz, 1280 x 1024/ 60Hz, 1280 x 720/ 60Hz, 1024 x 768/60Hz |
| Encoding Resolution | Main Stream: 1080P (non-real-time) / 720P / VGA / WD1 / 4CIF / CIF/
Sub-Stream: WD1(non-real-time)/ 4CIF(non-real-time)/ CIF/ QCIF/ QVGA |
| Frame Rate | Main Stream: 1/16fps~ Real time frame rate/
Sub-Stream: 1/16fps~ Real time frame rate |
| Video Bit Rate | 32Kbps-4Mbps |
| Audio Output | 1-CH, RCA (Linear, 1 kΩ) |
| Audio Bit Rate | 64 Kbps |
| Dual-Stream | Support |
| Stream Type | Video, Video & Audio |
| Synchronous Playback | 32CH |
| Playback Resolution | 1080P/ 720P/ VGA/ WD1/ 4CIF/ CIF QVGA/ QCIF |
| Network | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk | |
| SATA | 4 SATA Interfaces for 4 HDDs; 1 eSATA interface |
| Capacity | Up to 6TB capacity for each disk |
| External Interface | |
| Network Interface | 1:10M/ 100M/ 1000M self adaptive Ethernet interface |
| Serial Interface | RS-232, RS-485, Keyboard |
| USB Port | 3xUSB2.0 |
| Alarm In/Out | 16/4 |
| General | |
| Power Supply | 100~240VAC, 47~63HZ |
| Consumption | ≤65W |
| Working Temperature | -10°C ~ 55°C(14°F-131°F) |
| Working Humidity | 10%~90% |
| Chassis | 19-inch rack mounted 1.5U Chassis |
| Dimesnsions (WxDxH) | 445 x 390 x 70mm (17.5x15.3x2.7inch) |
| Weight | ≤5Kg (11.0lb) |
