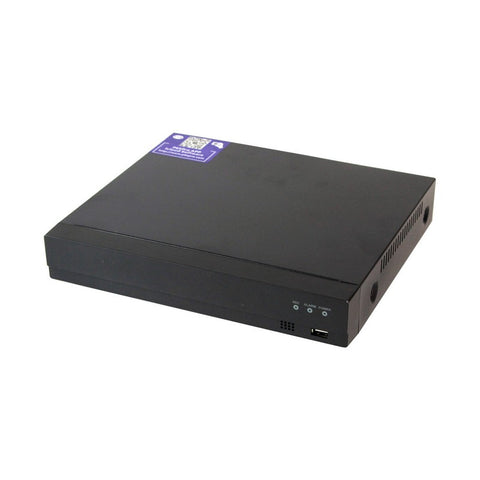

DVRB0848S - 8 channel 4K (8MP) 5-IN-1 DVR
H.265 8MP 4K 5-IN1 RECORDING STANDALONE DVR - 8 CHANNELS
- 8-Channel
- AHD, HD-TVI, HD-CVI / Analog x8 / IPC x8
- HDMI(4K) x1, VGA x1, BNC x1
- 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 720p60
- With 1TB HDD
Specification
| Model Number | DVRB0848S |
| Recorder Channel | 8-Channel |
| Video Input | AHD, HD-TVI, HD-CVI / Analog x8 / IPC x8 |
| Video Output | HDMI(4K) x1, VGA x1, BNC x1 |
| HD Camera Input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 720p60 |
| IP Input | 5MP, 1080P, 960P |
| Encoding Resolution | 8MP@8fps, 5MP@10fps, 1080P@15fps, 720P@25fps |
| Audio Input | 4-CH RCA |
| Audio Output | 1-CH RCA |
| Synchronous Playback | 8-CH |
| Network Function | P2P Cloud Function, Easy Set Up and Use |
| Alarm Input/Output | N/A |
| Network Interface | RJ45 (10M/100M Self-Adapting) |
| HDD Interface | SATA x1, Up to 10TB Capacity |
| Peripheral Port | USB 2.0 x2, RS485 x1 |
| Recording Mode | Manual, Schedule, Motion |
| Power Supply | DC 12V, 2A |
| Dimension | 10(W) x9(L) x2(H)inch |
