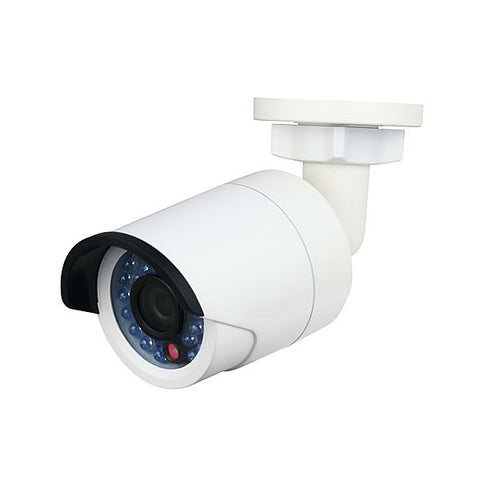

Contact for Replacement - CMIP8232 (white) / CMIP8232B (black) Platinum Mini Bullet Camera 3.2MP
Discontinued. Please contact for replacement.
- Click here to direct message.
- 208-917-2709
- service@securityhardwarestore.com
- 3.2MP High Definition
- 1/3” CMOS
- 2048X1536P@20fps
- 4mm Fixed Lens
- 30 IR LEDs up to 100ft
- 3D DNR, DWDR, BLC, VCA
- IP66
- DC 12V, PoE
Discontinued. Please contact for replacement.
- Click here to direct message.
- 208-917-2709
- service@securityhardwarestore.com
Specs
| Camera | |
| Image Sensor | 1/3" Sensor |
| Min. Illumination | 0.01 lux @F1.2, AGC ON, 0 lux with IR 0.028 lux @F2.0, AGC ON, 0 lux with IR |
| Shutter Speed | 1/25s~1/100,000s |
| Lens |
4mm @F2.0 2048X1536: Angle of view: 70° 1920X1080: Angle of view: 79° |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| Digital noise reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.264 / MJPEG |
| H.264 codec profile | Main profile |
| Bit Rate | 32 Kbps ~ 16 Mbps |
| Image | |
| Max. Resolution | 2048 × 1536 |
| Frame Rate | 60Hz: 15fps (2048 x 1536), 30fps (1920 ×1080), 30fps (1280 x 720) 50Hz: 12.5fps (2048 x 1536), 25fps (1920 ×1080), 25fps (1280 x 720) |
| Image Settings | Saturation, brightness, contrast adjustable through client software or web browser |
| BLC | Yes,zone configurable |
| Network | |
| Network Storage | NAS (iSCSI optional) |
| Alarm Trigger | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,802.1x, Qos (SIP, SRTP, IPv6 optional) |
| Interoperability | ONVIF, PSIA, CGI |
| Security | User authentication, watermark, flickerless, heartbeat,dual stream,mirror |
| Interface | |
| Communication Interface | 1 RJ45 10M / 100M ethernet interface |
| General | |
| Working Temperature /Humidity |
-25 °C ~ 60 °C (-13°F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 10% , PoE (802.3af) |
| Power Consumption | Max. 5W |
| Ingress protection level | IP66 |
| IR range | Up to 30m(100ft) |
| Dimension | 60.4 x 76.5 x 138.1mm(2.4”x 3.0”x 5.4”) |
| Weight | 300g(0.66lbs) |
