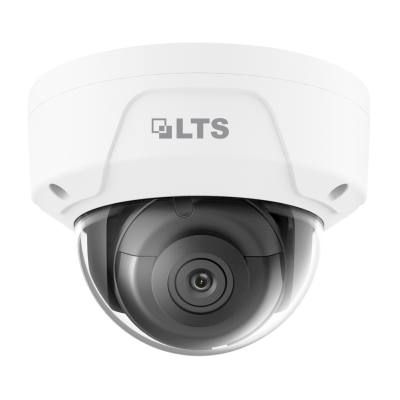

CMIP7362W-28M Platinum Network Vandal Dome IP Camera 6MP - 2.8mm
- 6MP High Definition
- 3072x2048@20fps
- 2.8mm Fixed Lens
- Matrix IR 2.0, IR Range up to 100 feet
- H.265, H.265+, H.264, H.264+ Ready
- True WDR 120dB
- IP67 & IK10
- MicroSD Slot up to 128GB
- DC 12V, PoE
Please contact to confirm latest quantities and prices.
- Click here to direct message.
- Call: 208-917-2901
- Email: service@securityhardwarestore.com
Specs
Click Here for PDF Specifications
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination | 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120° |
| Lens Mount | M12 |
| Day & Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 128dB |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Compression Standard | |
| Video Compress ion |
Main stream: H.2 65/H.264 Sub stream: H.265/H.2 64/MJPEG Third stream: H.2 65/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264 Zip+ | Support |
| H.265 Type | Main Profile |
| H.265+ | Support |
| Video Bit Rate | 32 Kbps ~ 16 Mbps |
| Image | |
| Max Resolution | 3072 × 2048 |
| Main Stream |
50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 360, 352 × 288) / 60Hz: 30fps (640 × 360, 352 × 240) |
| Third Stream | 50Hz: 25fps (1280 ×720) / 60Hz: 30fps (1280 ×720) |
| Image Enhancement | BLC/ 3D DNR |
| ROI | Support 1 fixed region for each stream, and face dynamic tracking |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Day/Night Switch | Auto/Scheduled |
| General | |
| Operating Conditions | -22 °F ~+140 °F(-30 °C ~ +60 °C ) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V |
| IR Range | Up to 100ft (30m) |
| Protection Level | IP67 |
| Impact Protection | IK10 |
| Dimensions | 4.4″ × 3.2″ (Φ 111× 82.4 mm) |
| Weight | 1.1lb (500g) |
