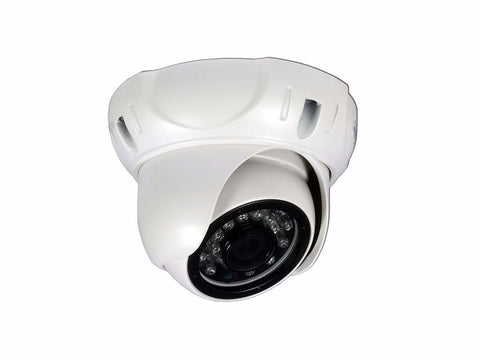

A-MHDMP36 1080P AHD/TVI/CVI/Analog 4-In-1 Fixed 3.6mm Outdoor IR Dome Camera
- Video Resolution: 1080P
- Signals: AHD / TVI / CVI / Analog
- Image Sensor: 1/3" Sony IMX 322 low illumination 2MP CMOS
- Lens: 3.6mm
- IR LEDs: 24 pcs
- Signal Mode: NTSC / PAL
- IR Distance: 60 ft
- White Balance: Auto White Balance
- Power Consumption: 12V @ 500mA Max
- Operating Temp.: -10°C ~ 50°C
- IP Rating: IP 66 Weatherproof
- 18 month warranty
Specs
| Video Sync. | INTERNAL |
| Compatible Signal | 1080P AHD / TVI / CVI / Analog |
| Image Sensor | 1/3" Sony IMX 322 low illumination 2MP CMOS + FH8536 |
| Resolution | 1080P |
| Signal Mode | NTSC / PAL |
| Lens | 3.6 mm |
| IR LED | 24 units |
| White Balance | Auto |
| Sensitivity | 0 Lux (IR On) |
| IR Distance | Up to 60 ft. |
| Electronic Shutter | Auto 1/50 (or 1/60) ~ 1/100,000 sec |
| S/N Ratio | > 58dB (AGC off) |
| Lens Mount | C/CS/M12 |
| Video Signal Output | 1 vp-p, 75 Ohms |
| D/N Mode | Auto |
| Back Light Compensation | Auto |
| AGC Control | Auto |
| Flickerless Mode | Auto |
| Power Consumption | DC 12V @ 500mA |
| Dimension | 112 L x 112 W x 77 H mm / 4.45" x 4.45" x 3.1" |
| Operating Temp. | -10°C ~ 50°C / 14°F ~ 122°F |
| Weight(Approx.) | 1 lbs |
