Camera
Image Sensor	1/3" Sensor
Min. Illumination	0.01 lux @F1.2, AGC ON, 0 lux with IR 0.028 lux @F2.0, AGC ON, 0 lux with IR
Shutter Speed	1/25s~1/100,000s
Lens	4mm @F2.0 2048X1536: Angle of view: 70° 1920X1080: Angle of view: 79°
Lens Mount	M12
Day & Night	IR cut filter with auto switch
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.264 / MJPEG
H.264 codec profile	Main profile
Bit Rate	32 Kbps ~ 16 Mbps
Max. Resolution	2048 × 1536
Frame Rate	60Hz: 15fps (2048 x 1536), 30fps (1920 ×1080), 30fps (1280 x 720) 50Hz: 12.5fps (2048 x 1536), 25fps (1920 ×1080), 25fps (1280 x 720)
Image Settings	Saturation, brightness, contrast adjustable through client software or web browser
BLC	Yes,zone configurable
Network
Network Storage	NAS (iSCSI optional)
Alarm Trigger	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,802.1x, Qos (SIP, SRTP, IPv6 optional)
Interoperability	ONVIF, PSIA, CGI
Security	User authentication, watermark, flickerless, heartbeat,dual stream,mirror
Interface
Communication Interface	1 RJ45 10M / 100M ethernet interface
General
Working Temperature /Humidity	-25 °C ~ 60 °C (-13°F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10% , PoE (802.3af)
Power Consumption	Max. 5W
Ingress protection level	IP66
IR range	Up to 30m(100ft)
Dimension	60.4 x 76.5 x 138.1mm(2.4”x 3.0”x 5.4”)
Weight	300g(0.66lbs)

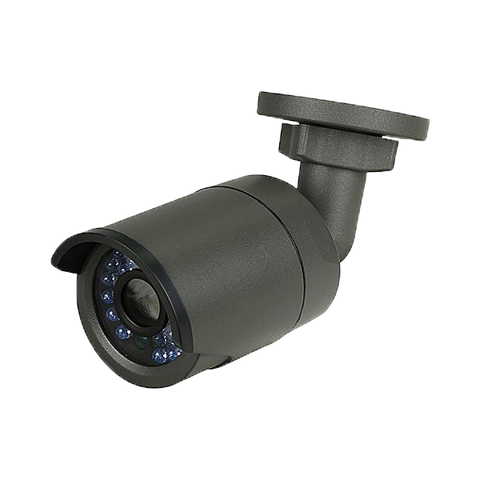

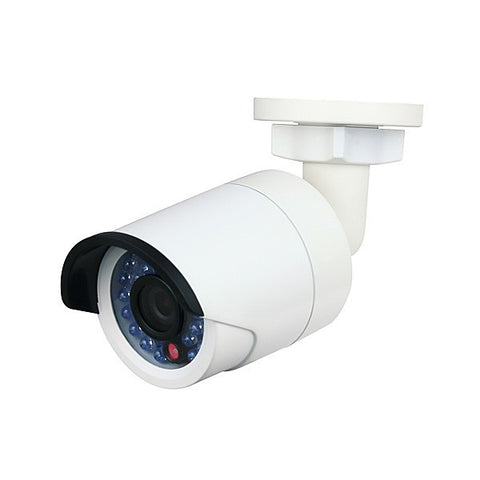

Contact for Replacement - CMIP8232 (white) / CMIP8232B (black) Platinum Mini Bullet Camera 3.2MP
